The oil filter is the consumable every engine depends on — and the first part counterfeiters copy. A fake filter looks identical on the shelf but filters badly, and the damage it does shows up later as engine wear rather than as an obvious defect. For manufacturers and brand owners, consumables are also a primary profit centre, which makes the channel worth protecting. YQM ELECTRONICS builds high-temperature NFC tags that sit inside the filter itself: a heat-resistant FPC tag rated for 105°C continuous operation, battery-free and maintenance-free, read by a compact NFC module linked to the engine control board.
1. Application Scenario: Why a Consumable Needs an Electronic Identity
An oil filter strips contaminants out of engine oil so that bearings, cams and cylinder walls receive clean lubrication. Clean oil reduces friction losses and keeps the engine running at its designed efficiency. The filter is a wear item on a fixed replacement interval — a consumable in the strictest sense, bought again and again over the life of every vehicle.
That recurring revenue is exactly what makes the market attractive to counterfeiters. Inferior filters that barely filter reach the shelf looking authentic, and once fitted they become a safety risk rather than a visible defect. Because consumables are also a core profit source for manufacturers, brand owners need protection that travels with the physical part: every unit individually verifiable, every service event traceable. That is the role the electronic tag fills.
2. Solution Features
- High-Temperature Construction: the tag pairs a heat-resistant FPC substrate with an imported high-temperature chip, so it survives the thermal environment of the filter.
- 105°C Continuous Operation: rated for long-term stable operation at up to 105°C — well beyond what standard NFC inlays tolerate.
- Flexible Form Factor: the tag shape adapts to different filter structures, so it fits existing assemblies without a mechanical redesign.
- Battery-Free and Maintenance-Free: a passive NFC tag draws its operating power from the reader's field. There is no cell to replace and no service interval of its own.
3. Solution Architecture

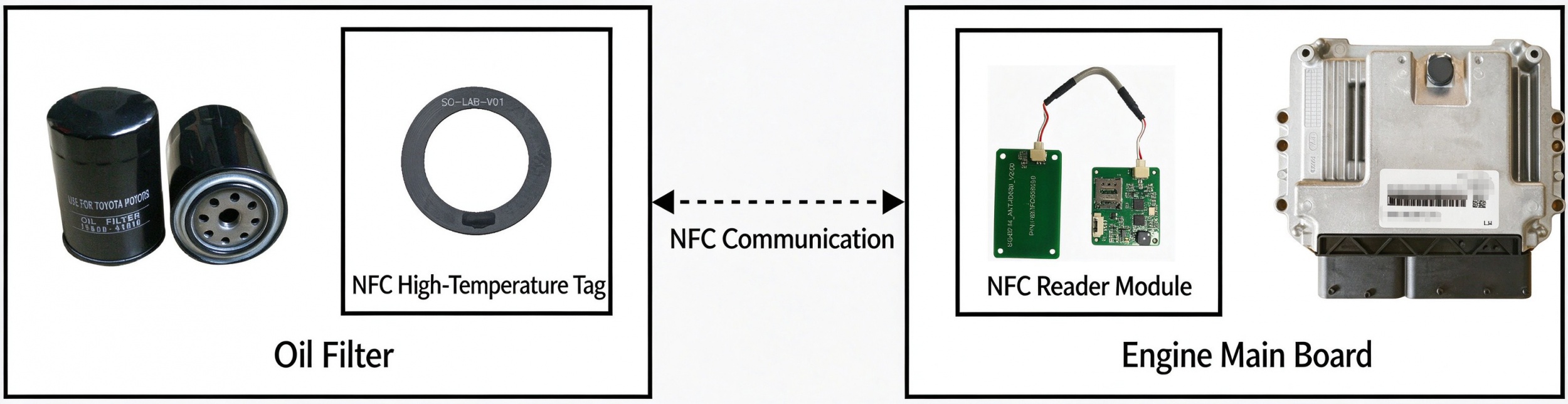

The system is deliberately small: a tag, a reader, and the vehicle electronics that are already there. On the filter side, the high-temperature tag sits inside the filter assembly. On the vehicle side, an NFC reader module — a driver board with an FPC antenna — links to the engine control board. The two communicate over short-range 13.56 MHz NFC, so a verification only happens when the filter is physically close to the reader.
Two functions run over that link:
- Genuine-part authentication: the original manufacturer's authentication data is held electronically in the tag, so a genuine part can be distinguished from a copy at the point of service.
- Service-life logging: installation time and accumulated service life are written back to the tag, turning the filter into a part with its own verifiable history.
4. Core Technical Principles
The tag is read by NFC inductive coupling at 13.56 MHz. The reader module's transmit stage writes to and reads from the tag's internal memory using a defined data format, which is what allows the tag to hold a record that changes over time rather than a single fixed identifier — the mechanism behind dynamic monitoring instead of one-time authentication.
The hard part of this design is not the RF link but the thermal environment. Standard NFC inlays are not built to sit in the heat a filter sees in service. Selecting a high-temperature circuit board material and qualifying the chip for elevated operating temperature is what prevents the tag from failing or degrading under sustained heat — and that material and chip selection, not the antenna, is where the reliability of the whole solution is decided.
5. Services & Support
- Scenario Planning: YQM engineers work from your requirements and product advantages to propose a practical configuration.
- Solution Design: theory plus simulation, assessed against the real deployment environment, before any hardware is built.
- Engineering Staffing: R&D engineers and FAE support through development and into production.
- Product Support: proven drop-in replacements, custom solution development, and high-efficiency RF design.
- Documentation: site environment analysis reports, improvement reports, and solution reports.
6. Cooperation Model & Expandable Products
- NFC kit supply — drive library, NFC chip, reader antenna, and tag supplied as one set.
- NFC module supply — a module with its antenna integrated, plus the tag.
Conclusion: NFC High-Temp Tags — Giving Every Consumable Its Own Identity
A consumable that carries its own electronic identity changes what anti-counterfeiting can do. The filter no longer has to be authenticated by a database lookup on a part number; the part itself answers, and it keeps answering as it is used — which is what turns a 105°C-tolerant tag into a service record rather than a sticker. YQM ELECTRONICS supplies the tag, the reader module and the RF engineering behind both, from filter consumables to other parts that run hot and get copied.
Explore YQM ELECTRONICS' complete custom module solutions to build NFC authentication and service-life logging into your own consumable product line. Our engineering team supports the full path — tag design, chip and antenna selection, prototype development, and volume manufacturing.
Further reading: Explore the complete custom module solutions or reach out to our engineering team to discuss your specific high-temperature NFC tagging requirements.
